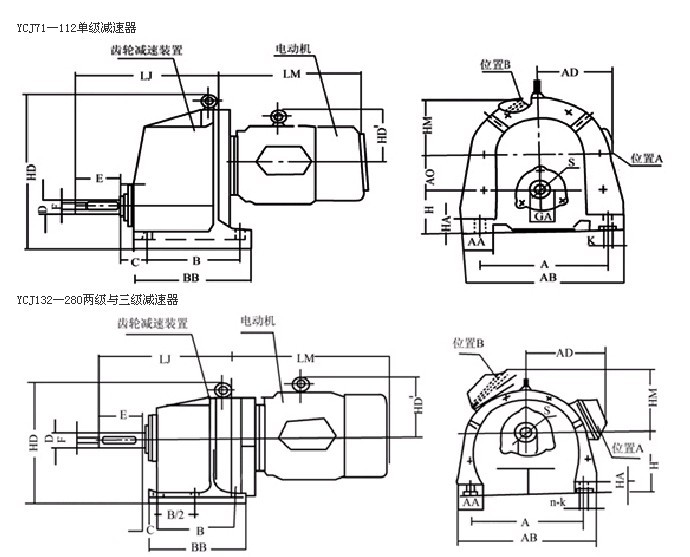

 YCJ71、YCJ80、YCJ100、YCJ112、YCJ132、YCJ160、YCJ180、YCJ200、YCJ225、YCJ250、YCJ280齒輪減速三相異步電動機底腳安裝的外形及安裝尺寸JB/T6442-92
底腳安裝的減速電動機
|
機座號 |
安裝尺寸 |
外形尺寸 |
|
A |
B |
B/2 |
C |
D |
E |
F |
H |
K |
n |
S‵ |
AA |
AB |
BB |
GA |
HA |
HD |
AO |
LJ |
|
71 |
180 |
150 |
— |
36.5 |
28 |
60 |
8 |
71 |
14 |
4 |
M8 |
45 |
225 |
192 |
31.0 |
22 |
235 |
70 |
240 |
|
80 |
205 |
170 |
— |
39.5 |
32 |
80 |
10 |
80 |
18 |
4 |
M10 |
52 |
255 |
218 |
35.0 |
28 |
305 |
75 |
275 |
|
100 |
270 |
205 |
— |
44.5 |
42 |
110 |
12 |
100 |
24 |
4 |
M12 |
60 |
330 |
255 |
45.0 |
35 |
355 |
100 |
345 |
|
112 |
300 |
215 |
— |
44.5 |
48 |
110 |
14 |
112 |
24 |
4 |
M12 |
60 |
360 |
265 |
51.5 |
40 |
420 |
110 |
355 |
|
132 |
215 |
150 |
— |
37.0 |
32 |
80 |
10 |
132 |
14 |
4 |
M10 |
40 |
260 |
192 |
35.0 |
25 |
265 |
— |
295 |
|
160 |
260 |
160 |
— |
43.5 |
42 |
110 |
12 |
160 |
18 |
4 |
M12 |
55 |
320 |
208 |
45.0 |
30 |
310 |
— |
355 |
|
180 |
300 |
190 |
— |
31.0 |
48 |
110 |
14 |
180 |
24 |
4 |
M12 |
65 |
370 |
248 |
51.5 |
35 |
350 |
— |
370 |
|
200 |
330 |
220 |
— |
55 |
110 |
16 |
200 |
24 |
4 |
M16 |
70 |
400 |
278 |
59.0 |
40 |
380 |
— |
400 |
|
225 |
360 |
240 |
120 |
31.0 |
70 |
140 |
20 |
225 |
24 |
6 |
M20 |
70 |
430 |
298 |
74.5 |
45 |
430 |
— |
450 |
|
250 |
420 |
260 |
130 |
31.0 |
75 |
140 |
20 |
250 |
24 |
6 |
M20 |
75 |
490 |
318 |
79.5 |
50 |
470 |
— |
465 |
|
280 |
450 |
280 |
140 |
32.0 |
85 |
170 |
22 |
280 |
24 |
6 |
M20 |
80 |
520 |
340 |
90.0 |
55 |
525 |
— |
520 | |
|
|
