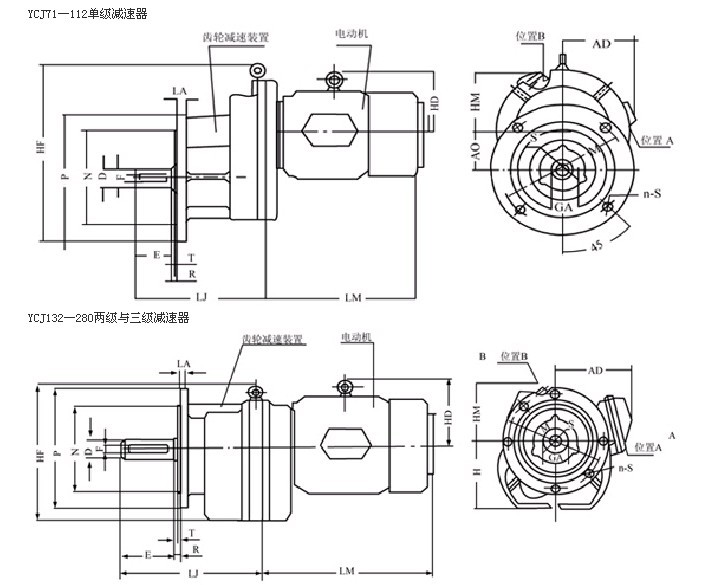

 YCJ71、YCJ80、YCJ100、YCJ112、YCJ132、YCJ160、YCJ180、YCJ200、YCJ225、YCJ250、YCJ280齒輪減速三相異步電動機凸緣安裝的外形及安裝尺寸JB/T6442-92
凸緣安裝的減速電動機
|
減速器機座號 |
安裝尺寸 |
外形尺寸 |
|
D |
E |
F |
M |
N |
P |
R |
S |
T |
n |
S‵ |
LA |
GA |
AO |
HF |
LJ |
H |
|
71 |
28 |
60 |
8 |
165 |
130 |
200 |
0 |
12 |
3.5 |
4 |
M8 |
14 |
31.0 |
70 |
260 |
240 |
— |
|
80 |
32 |
80 |
10 |
215 |
180 |
250 |
0 |
15 |
4.0 |
4 |
M10 |
16 |
35.0 |
75 |
350 |
275 |
— |
|
100 |
42 |
110 |
12 |
265 |
230 |
300 |
0 |
15 |
4.0 |
4 |
M12 |
16 |
45.0 |
100 |
405 |
345 |
— |
|
112 |
48 |
110 |
14 |
300 |
250 |
350 |
0 |
19 |
5.0 |
4 |
M12 |
20 |
51.5 |
110 |
485 |
355 |
— |
|
132 |
32 |
80 |
10 |
215 |
180 |
250 |
0 |
15 |
4 |
4 |
M10 |
14 |
35.0 |
— |
265 |
295 |
132 |
|
160 |
42 |
110 |
12 |
265 |
230 |
300 |
0 |
15 |
4 |
4 |
M12 |
16 |
45.0 |
— |
310 |
355 |
160 |
|
180 |
48 |
110 |
14 |
265 |
230 |
300 |
0 |
15 |
4 |
4 |
M12 |
16 |
51.5 |
— |
350 |
370 |
180 |
|
200 |
55 |
110 |
16 |
300 |
250 |
350 |
0 |
19 |
5 |
4 |
M16 |
20 |
59.0 |
— |
380 |
400 |
200 |
|
225 |
70 |
140 |
20 |
350 |
300 |
400 |
0 |
19 |
5 |
4 |
M20 |
20 |
74.5 |
— |
430 |
450 |
225 |
|
250 |
75 |
140 |
20 |
400 |
350 |
450 |
0 |
19 |
5 |
8 |
M20 |
22 |
79.5 |
— |
485 |
465 |
250 |
|
280 |
85 |
170 |
22 |
500 |
450 |
550 |
0 |
19 |
5 |
8 |
M20 |
22 |
90.0 |
— |
570 |
520 |
280 | |
|
|
